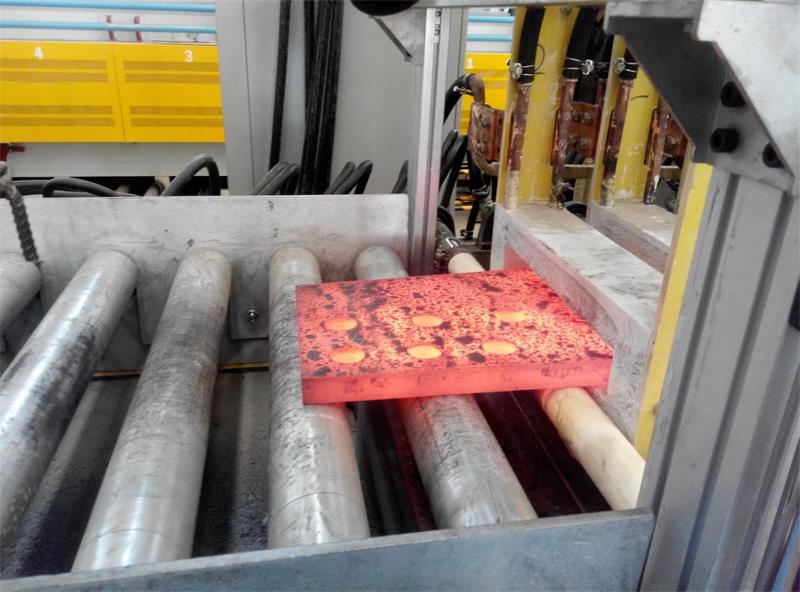

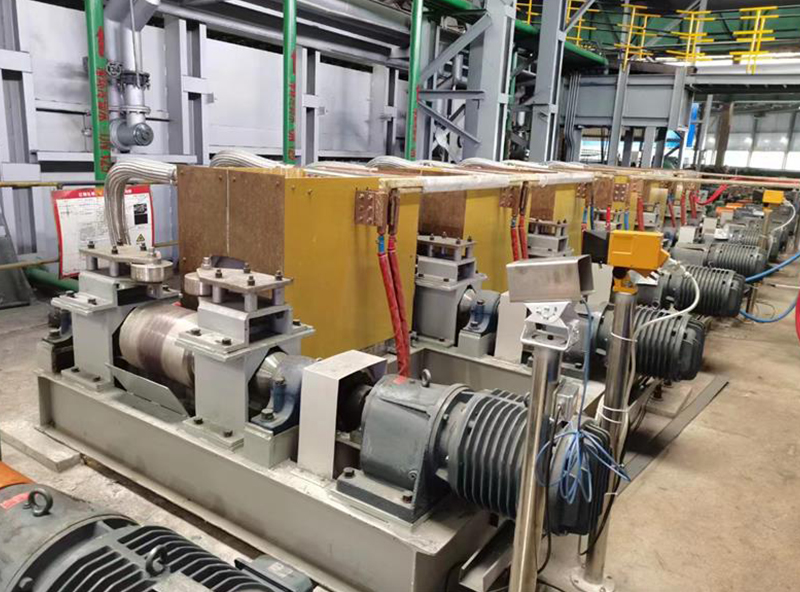

Induction heating system for heating special-shaped steel

　　●Power parameters:KGPS100-4000KW/0.2-8KHz or IGBT100-1000KW/4-20KHz.

　　●Conveying system:cylinder,hydraulic cylinder or roller+power double clamp.

　　●Feeding system:each axis is driven by an independent motor reducer,multi-axis drive is set,and a single inverter is controlled to synchronize the operation of multiple axes.

　　●Discharging system:gas-liquid booster cylinder,linear guide rail,fast electric machinery and PLC system form a fast discharging mechanism.

　　●Guide system:304 stainless steel guide wheel is used,and the axial direction of the guide wheel is kept moderately elastic to adapt to the bending within the allowable range of steel.

　　●Industrial computer system:record and display the current working parameters and status,material parameter memory,storage,forging equipment failure,automatic power reduction and maintenance of constant temperature and many other powerful functions.

　　▲Energy conversion:Heating one ton of steel to 1050℃consumes 310 to 330 degrees of electricity.
