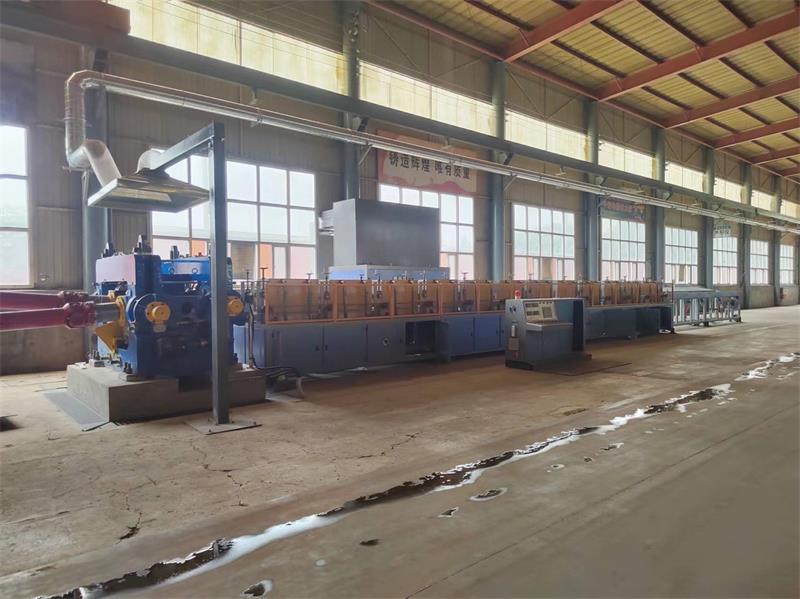

Induction heating system for rolling medium and small steel balls

　　●Power parameters:200KW-3000KW or IGBT200KW-IGBT2000KW,hourly output 0.2-8 tons.

　　●Raw material:B2,B3,70Cr2,75Mncr,65Mn,60Mn,GCr15,40Cr,45#,etc.

　　●Sensor design:double insulation,positive and negative winding,temperature gradient design,higher efficiency.

　　●Transmission roller:enables round steel bars of different diameters to be fed at a uniform speed.The rollers and rollers between the furnace bodies are made of 304 stainless steel and water-permeable to increase the service life.

　　●Temperature detection:An infrared temperature measuring device is set at the discharge end to detect the temperature of the steel bars before entering the rolling mill in real time to stabilize the quality of the steel balls.

　　▲Energy conversion:Heating to 930℃～1050℃,consuming 260~280 degrees of electricity.
