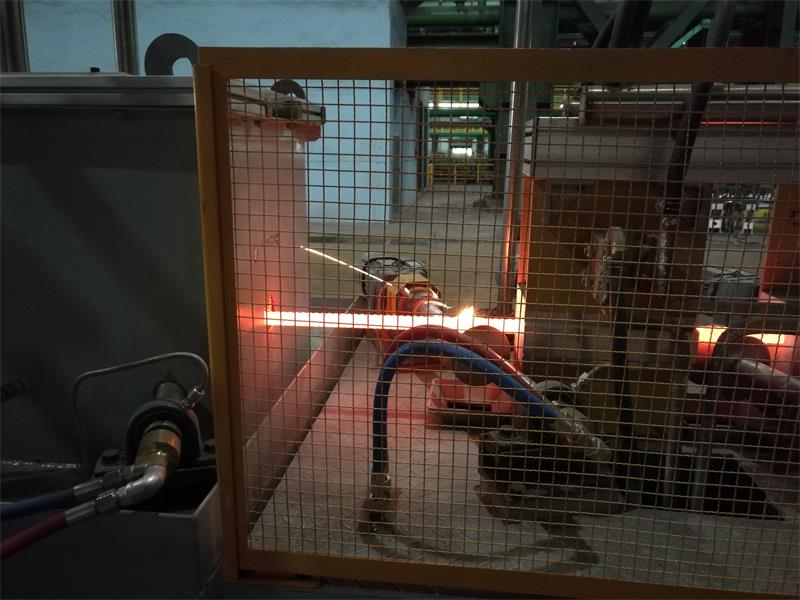

Induction heating system for rolling rebar, die steel and stainless steel.

　　●Power parameters:1000KW-5000KW,frequency 2.5KHz-15KHz,specificationΦ12-Φ32,hourly output 2.5-15 tons.

　　●Raw material:M2 high-speed steel,11Cr17 martensitic stainless steel,rebar.

　　●Sensor design:double insulation,positive and negative winding,temperature gradient design,higher efficiency.

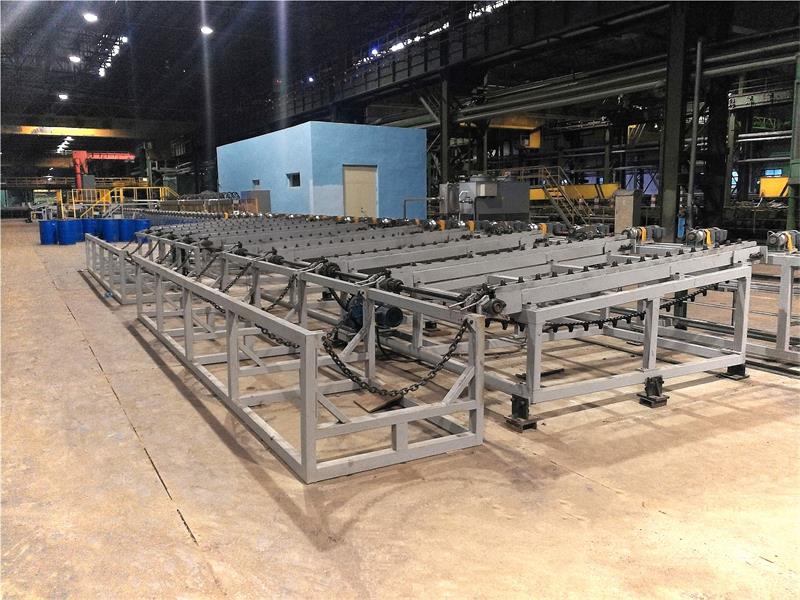

　　●Conveyor roller:The roller axis and the workpiece axis form an angle of 18 to 23°.The workpiece rotates while feeding at a constant speed to make the heating more uniform.The furnace body

　　intermediate roller is made of 304 stainless steel and water-cooled to increase the service life.The rollers in other parts are made of 45 steel and surface quenched.

　　●Infrared temperature measurement:An infrared temperature measuring device is set at the discharge end to detect the furnace temperature in real time to maintain consistent process.

　　▲Energy conversion:Heating to 1200℃,power consumption 320-360 degrees.
