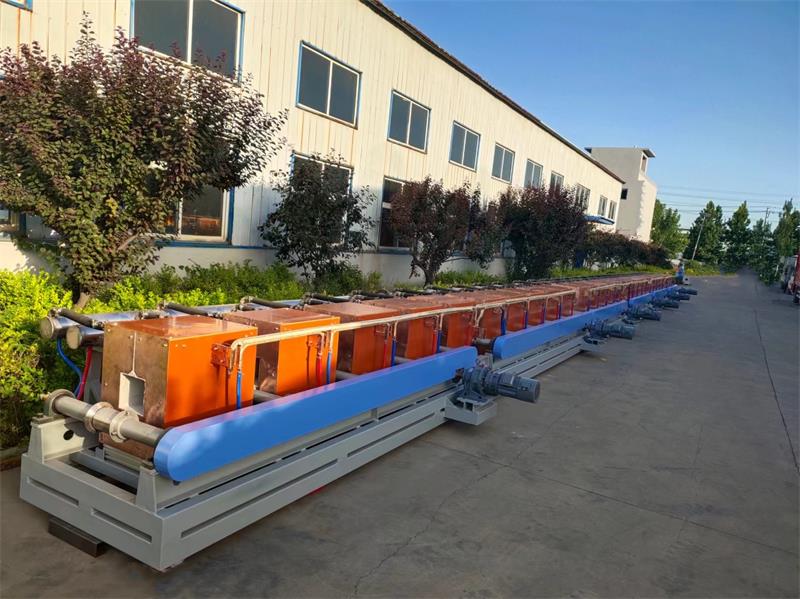

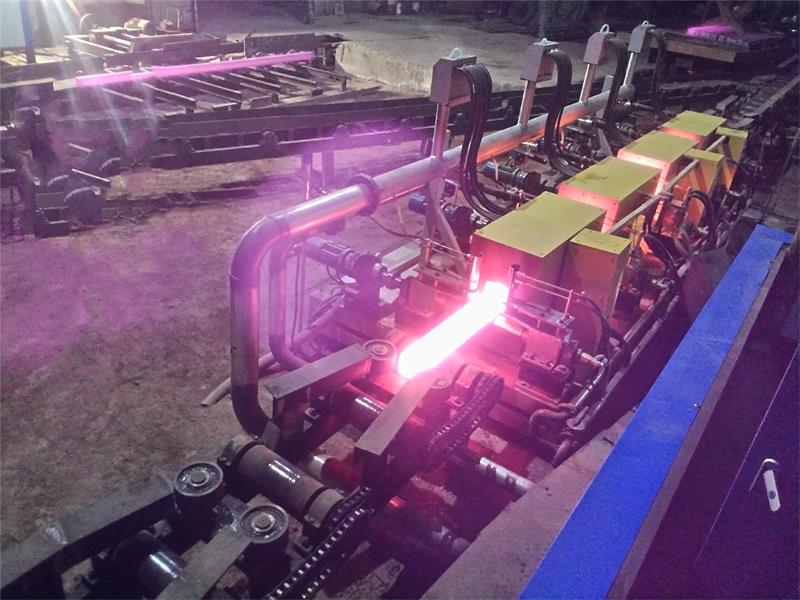

Induction heating system for billet temperature compensation

●Power parameters: double rectifier twelve-pulse 1000-12000KW/500-1200Hz, single power supply can be used independently or multiple power supplies can be used in parallel.

●Production efficiency: hourly output 40 tons-300 tons

●Application scope: 200mm-1500mm slab, length 3000mm-12000mm

●Feeding system: each axis is driven by an independent motor reducer, multi-axis drive is set, and a single inverter is controlled to synchronize the operation of multiple axes.

●Guide system: 304 stainless steel guide wheel is used, and the axial direction of the guide wheel is kept moderately elastic to adapt to the bending within the allowable range of the billet.

●Temperature closed-loop system: A closed-loop control system composed of an infrared thermometer and a German Siemens S7 series control system, which automatically adjusts the power supply power according to the initial temperature and feed speed of the billet entering the sensor, so that the heating temperature remains constant before leaving the furnace.

● Operating system: real-time display of current working parameters and status, billet parameter memory, storage, printing, fault alarm, automatic power reduction and

maintaining constant temperature and many other powerful functions.

▲ Energy conversion: Depending on the surface temperature of the billet, one ton of steel consumes 20 to 60 degrees of electricity.
