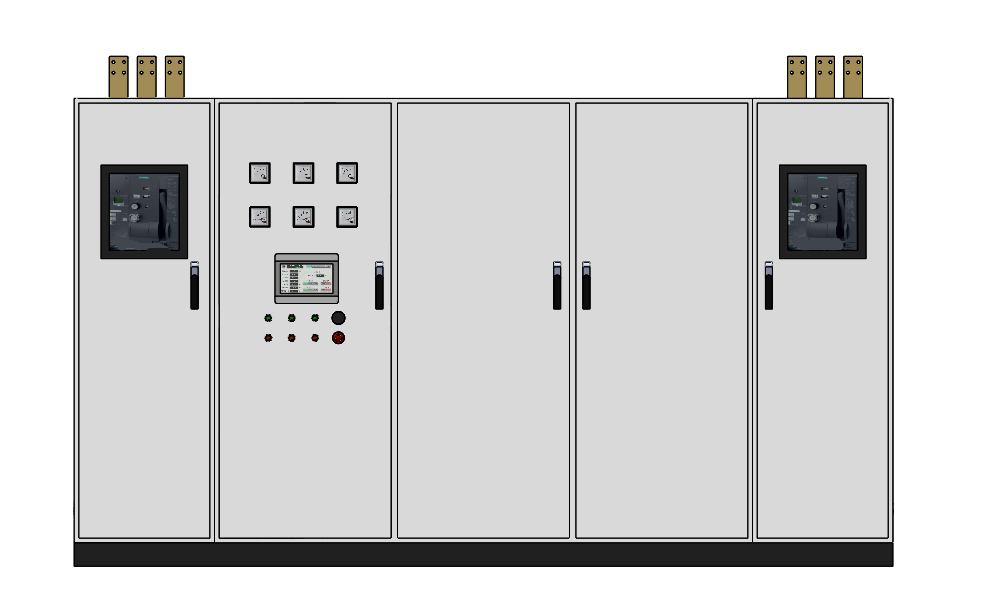

IGBT Intelligent Variable Frequency Adaptive Induction Heating Power Supply

　　●Power parameters:100kW-2000kW,0.2kHz-30kHz,power factor>0.95.

　　●Application areas:rolling heating,billet heating,quenching and tempering production line,forging,etc.

　　●Frequency adaptation:adaptive range 0.35kHz,after process adjustment and load change,no manual intervention is required to open the cabinet door to adjust the power supply,the power supply frequency automatically tracks,and automatically jumps to the optimal resonant frequency of the load.

　　●Load adaptation:after process adjustment and load change,the power supply and load automatically track and lock to the optimal working state,achieving high efficiency,high quality and process consistency.

　　●High power quality:matching a variety of loads,when the power output is≥40%,the power factor is greater than 0.9,and no separate power compensation device is required,which not only reduces equipment investment but also reduces electricity bills for users,improves power supply capacity,and reduces high-order harmonics.

　　●Start-up rate:Under any load(no load/full load)and temperature(cold/hot),a quick start of 0.2 seconds is achieved,and 100%startup success rate.
