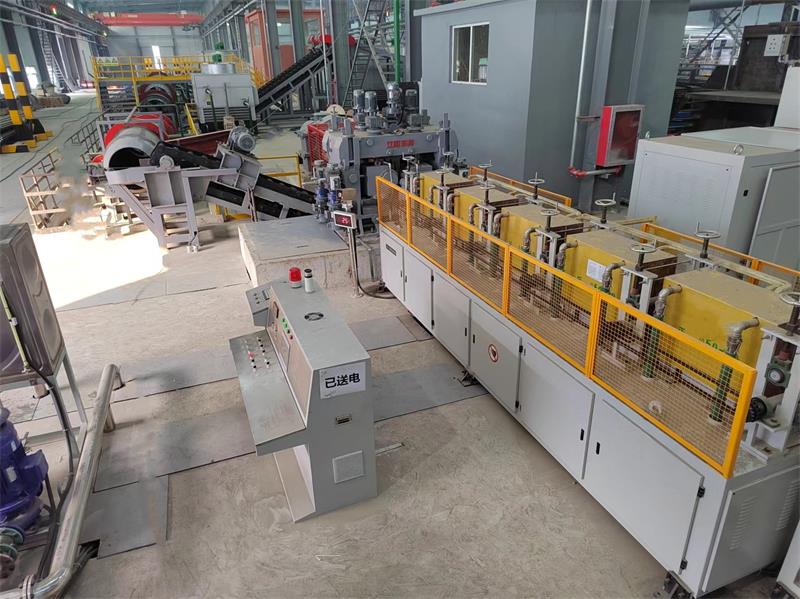

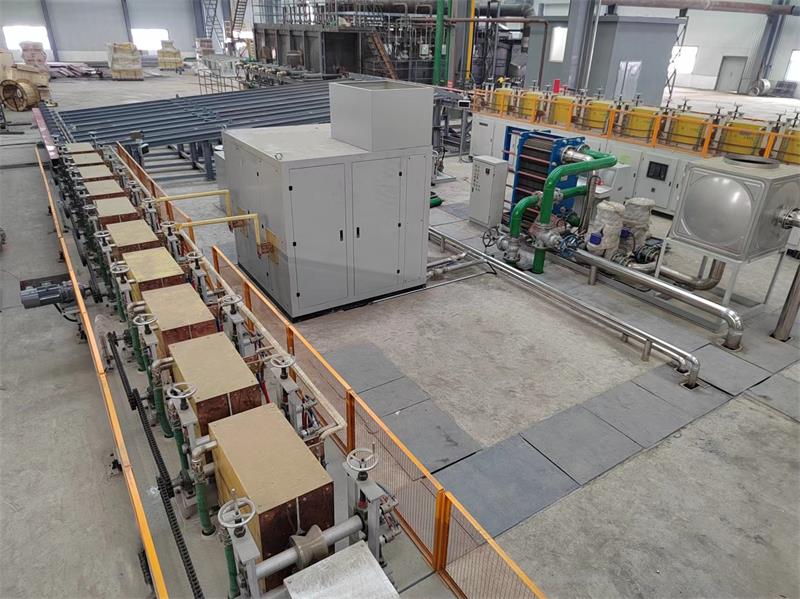

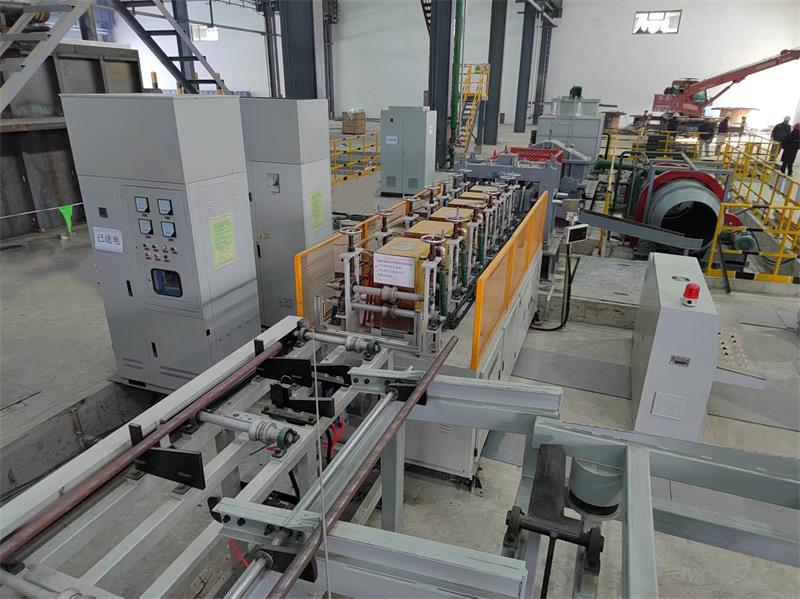

Induction heating system for rolling large steel balls

　　●Power parameters:200KW-6000KW or IGBT200KW-IGBT2000KW,hourly output 0.2-16 tons.

　　●Processing materials:B2,B3,70Cr2,75Mncr,65Mn,60Mn,GCr15,40Cr,45#,etc.

　　●Sensor design:double insulation,positive and negative winding,temperature gradient design,higher efficiency.

　　●Adjustable roller:round steel bars of different diameters can be fed at a uniform speed.The rollers and rollers between the furnace bodies are made of 304 non-magnetic stainless steel and water-cooled to

　　increase service life.

　　●Temperature detection:an infrared temperature measuring device is set at the discharge end to detect the temperature of the steel bars before entering the rolling mill in real time to stabilize the quality of the steel balls.

　　▲Energy conversion:heated to 930℃～1050℃,consuming 260~280 degrees of electricity.
