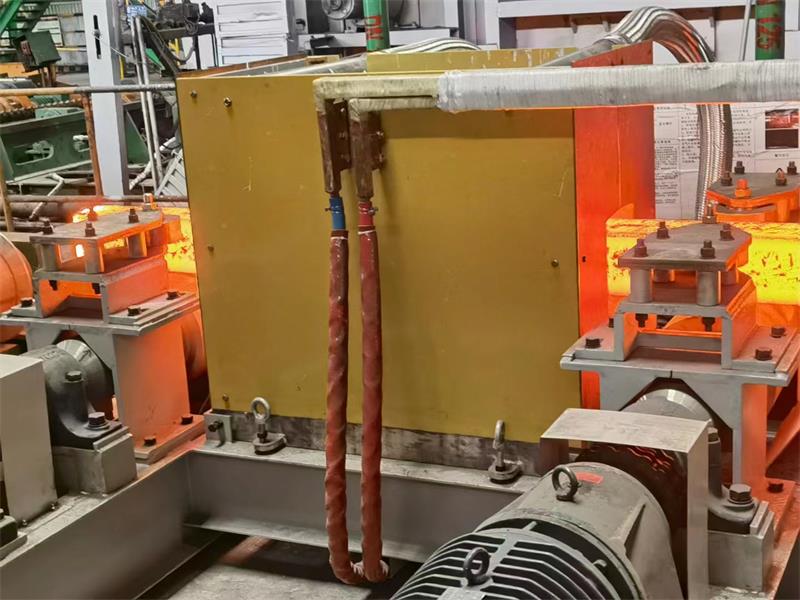

Induction heating system for temperature compensation of continuous casting and rolling billet

　　●Power parameters:double rectifier twelve pulse 1000-12000KW/500-1200Hz single power supply used independently or multiple power supplies used in parallel.

　　●Production efficiency:hourly output 40 tons-300 tons

　　●Scope of application:120mm-160mm square billet,length 3000mm-12000mm

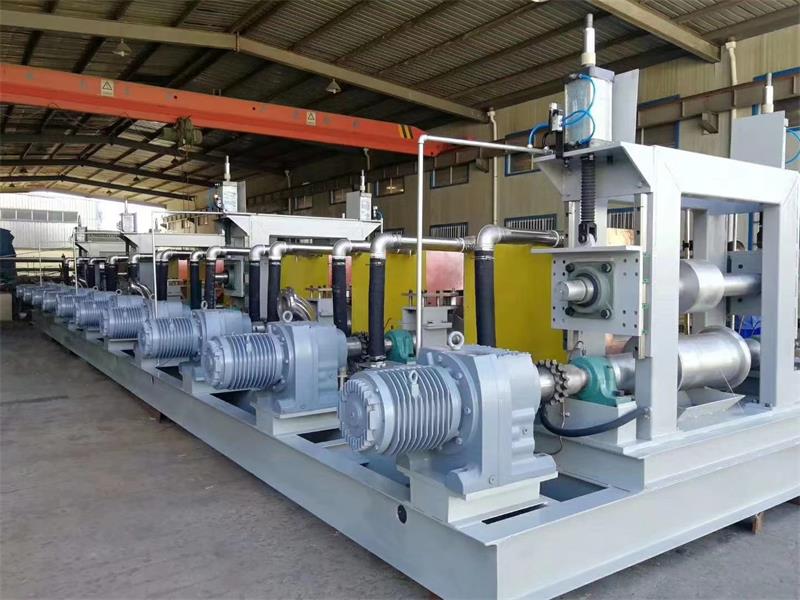

　　●Transmission system:each axis is driven by an independent reduction motor,multi-axis drive is set,single inverter control,so that multiple axes run synchronously.

　　●Guide system:304 stainless steel guide wheel is used,and the guide wheel axial direction has moderate elasticity to adapt to the bending of the billet in a small range.

　　●Temperature closed-loop system:The closed-loop control system consists of an infrared thermometer and a German Siemens S7.The power supply is automatically adjusted according to the initial temperature and feed speed of the billet entering the sensor,so that the heating temperature remains constant before leaving the furnace.

　　●Operating system:real-time display of the workpiece's operating status,workpiece temperature recording,storage,fault display,alarm and other functions.

　　▲Energy conversion:Depending on the surface temperature of the steel billet,one ton of steel consumes 40 to 60 degrees of electricity.
