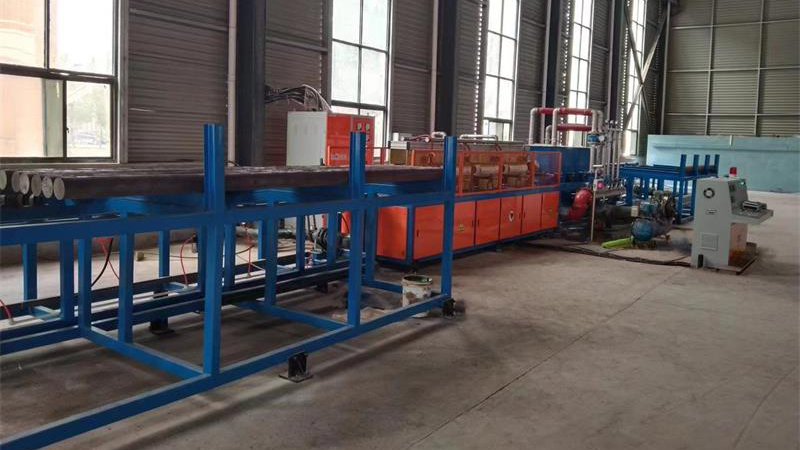

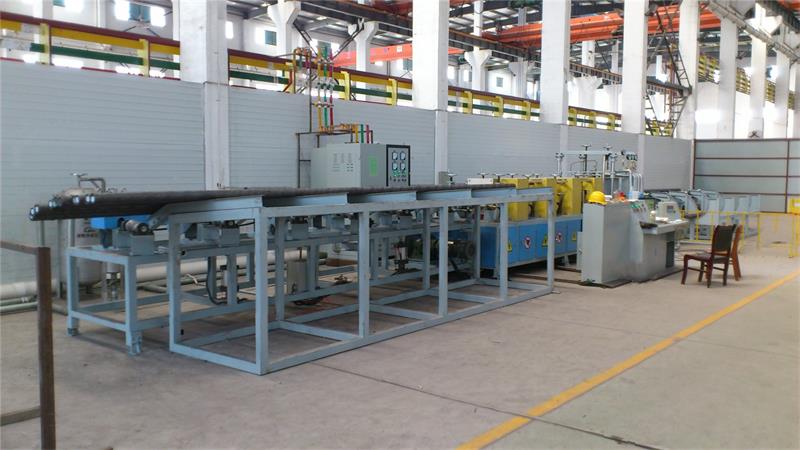

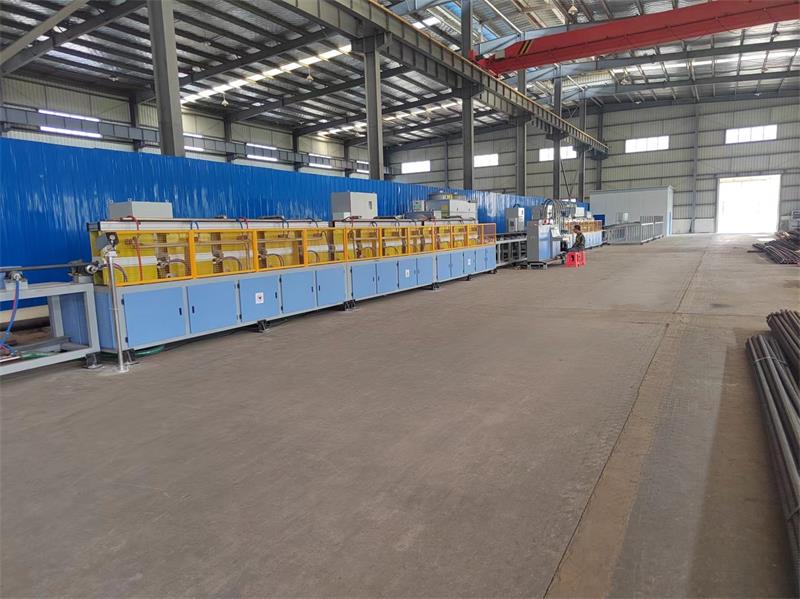

Induction heat treatment production line for mine grinding rod

　　●Power parameters:350KW-1000KW/0.5-2.5KHz,hourly output 1.5 tons-3.0 tons.

　　●Application:Suitable for heat treatment of grinding rods and wear-resistant steel rods.

　　●Conveying roller:The roller axis forms an angle of 18 to 23°with the workpiece axis.The workpiece rotates while feeding at a constant speed to make the heating more uniform.The furnace body

　　intermediate roller is made of 304 stainless steel and water-cooled to increase the service life.The rollers in other parts are made of 45 steel and surface quenched.

　　●Running roller:The feeding group,sensor group and discharging group are all controlled by the frequency conversion coefficient,so that there is no gap in continuous heating,which improves the quality and production efficiency of steel rods.

　　●Operating system:Real-time display of the running status of the workpiece,workpiece temperature recording,storage,fault display,alarm and other functions.

　　▲Energy conversion:Self-tempering after quenching is adopted,and the power consumption per ton is 260 to 280 degrees.
